New Printers
● Star fire SG600 XSA Or SG1024 XSA Print Head
● Print Speed: 10 - 48m/min Adjustable
● Printing width up to 516mm
● Maximum Material Size: 3200L * 516W * 40H mm
● 8 - 20pl variable dot printing
● Printing Resolution: 600dpi
● Ink color: CMYK
● Able to print onto wood, mdf, ceramic, glass, etc.
● Single pass technology with DOD piezo inkjet techonology
● Simple structure, easy and fast maintenance
DESCRIPTIONS

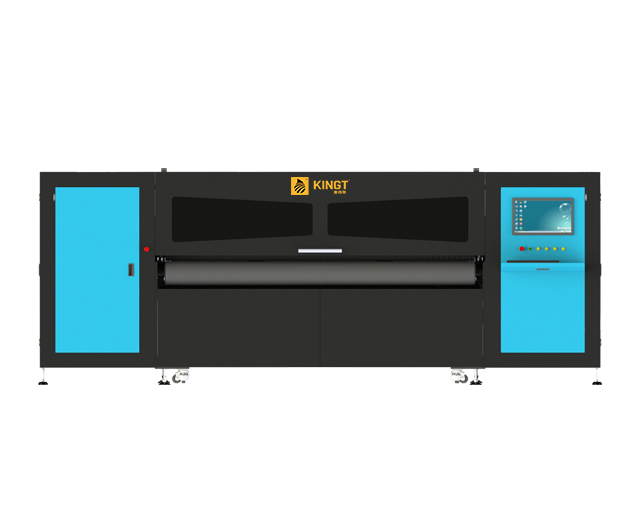

516 Digital Inkjet Single Pass Printer for Wood Grain Printing
The 516 Digital Inkjet Single Pass Printer can be equipped with 48 Star fire SG600 XSA print heads, and the production efficiency of single-chip printing can be more than 200 square meters/h.
516 single pass printing machine has the highest resolution of 600*2400dpi. The non-contact printing method can be used to print on the surface of the concave-convex plate with a 3D effect.
Whether it is solid wood composite flooring, laminate flooring, stone plastic flooring and other boards, it can be printed to meet the individual needs of designers and users in different decoration styles. It can also be applied to a variety of printing solutions such as ceiling and wall panel, glass, ceramics, marble, aluminum sheet, etc.
Compared with traditional printing, the 516 single pass printing machine has a simple structure. It can automatically moisturize and discharge waste ink, keeping the print head clean and prolonging its service life.
516 digital one pass printer has the advantages of saving time, saving labor and eco-friendly. It is easy to operate.
wood plastic board
glass sheet
artificial marble slab
metal plate

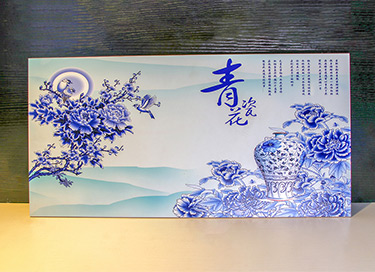

print ceramics
Solid wood board
| Model | 516 |
| Printhead | Star fire SG600 XSA Or SG1024 XSA Printhead |
| Printing Technology | Piezoelectric inkjet, variable dot printing (8-20pl) |
| Print Speed | 10 - 48m/min Adjustable |
| Printing Resolution | 600*2400 DPI |
| Ink Color | CMYK |
| Print Modes | Single pass technology with DOD piezo inkjet techonology |
| Printer Dimesions (X*Y*Z) | 4400x1180x2200 mm |
| Space Requirement (X*Y*Z) | 6000 mm (L)*3000 mm (W)*3000 mm (H) |
| Net Weight | 1200 kgs |
| Power Requirement | 3F+L+GND, 380V, 50/60Hz, 5KW, Independent grounding≤4Ω |
| Operating Conditions | Temperature: 24~28°C; Relative Humidity: 50%~80% |
FAQ
Q What is the Application Range of UV Printer?
Our UV printer enjoys wide application range. Currently, it has been extensively applied to advertisement, glasspanel, wood floor, ceramic tile, suspended ceiling, electronic product shell, individualized decoration and other fields. Fordetailed application cases, please refer to printer solutions in different application fields.
Q How many mobile phone cases can you print a day?
Take LE-2513 for example, we can print Iphone case about 5000 units per day.
Q How many years can a machine last?
About 8-10 years
Q How many machines will you sell earch year?
In the year of 2016, we sold 880 units and we sold 1200 units in 2017.we are the Top 3 Ricoh manufacturer in China.
Q How about the printing cost?
1L ink can print 80 M2,it is about 1 USD per square meter printing.
Q How many people in your company?
The number of employees is 200+, and we have the R&D 30 people, technical support 60 people, production 60 people. Strong research and development ability allows constant launches of new products to keep you at the top of the league.
Q What is your company advantage?
1.Accumulating nearly a decade of experiences in UV printing industry, GUNSJET provides you professional solutions in UV printers and help you save time and effort getting into the UV market.
2.GUNSJET is a trusted manufacturer with recognition from international suppliers. We ensure stable supplies of genuine products.
3.The top 3 printheads customer for Ricoh shows that GUNSJET takes up a significant market share of Ricoh printers in the market.
4.Expansion of manufacturing site and big production capability can cater your growing demand and provide timely delivery. No need to worry about delay or no stock.
5.The sales volume and amount doubled by 100millions in 2017 shows that you will be working with a fast growing company and expand the potential business together.
