UV Flatbed Printers
● Large Format Print Size【6.56 x 10 feet】2.0 X 3.3 Meters
● 3pcs (8pcs max) RICOH GEN5 (7pl) printheads (Gen6 Optional)
● Longer lifetime than Epson printheads
● Ricoh Gen6 printheads available
● Better relief or embossment, varnish or gloss, and 3D effects
● Ink color: CMYK/LC/LM plus W, V
● High quality 3pcs servo motors
● Able to print virtually onto any materials
● Support overseas installation and free training
DESCRIPTIONS

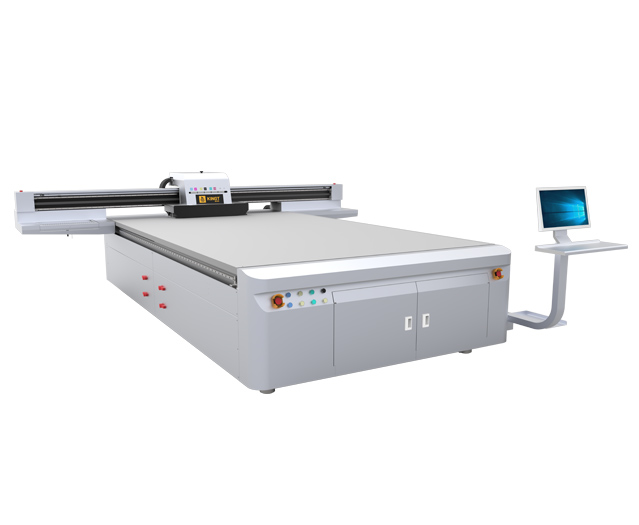

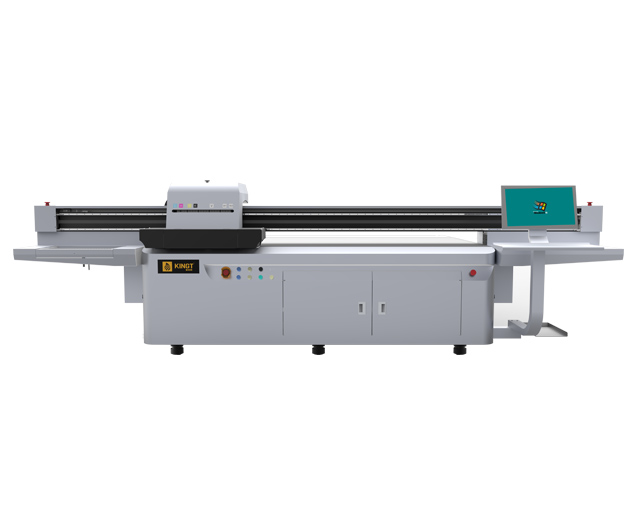

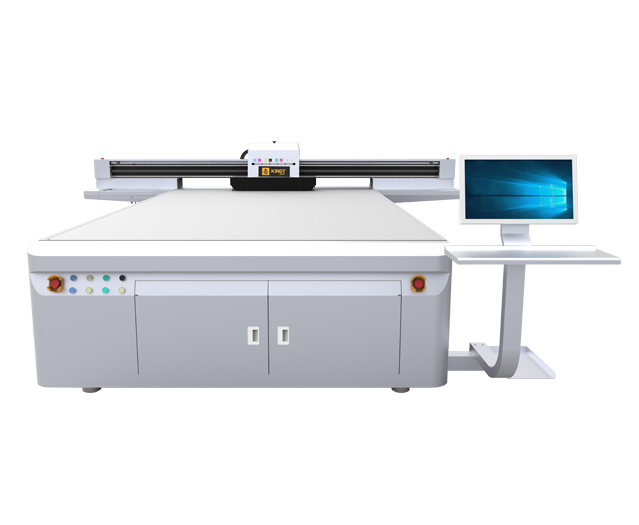

2033G5 Large Format UV Flatbed Printer With Gen5 Print heads
Looking For Quality Printing At Low Cost With UV Flatbed Printer?
In order to be more outstanding than the competitors, GUNSJET has a long-term coopreation with Ricoh company. And we are focus on Ricoh UV-LED inkjet flatbed printer, such as 2033, 2513, 1610, 1016 industrial uv printers (Ricoh Gen5, Gen6 and GH2220 printhead optional).
2033G5 is a large format UV flatbed printer. This award-winning large format uv printer now relies on UV LED curing to offer you impressive print quality with a wide variety of media. Embedded with the UV LED curing process, it has several benefits that make printing more economical and ecological. Its smartly integrated design is convenient for trouble-free operation.
2033G5 large format UV flatbed printer possess a high printing speed and high resolution, the variable ink drop makes the printed images more lifelike than the other images printed by other average printers, equipped with imported high performance rail guide, ensure stable movement, high print resolution, long-life, low noise.
With a large print area of maximum of 200cm*330cm, 2033G5 large format uv printer can print on a wide range of materials as following with outstanding results: ceramic tile, acrylic, wood, PVC sheet, metal sheet, glass, plastic, PVC, leather etc.
GUNSJET large format flatbed printer is to replace the traditional small uv printing machines, realized one-time printing work instead of whole traditional complicated process. And It is an ideal machine for both step-and-repeat work and for printing multiple jobs on differently sized media.
GUNSJET is a professional uv flatbed digital printing products manufacturer and solution provider!
Everything for your stable production. And choose a partner you can trust!

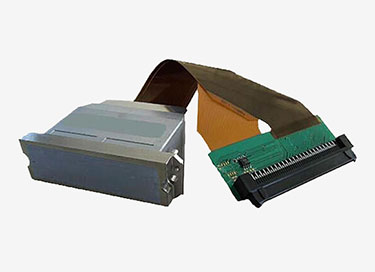

RICOH GEN5 Printheads
Staggered 3~8 Ricoh Gen5 printheads, Make of stainless steel volume 7pl. Long durable life (100 billion actuation), 30kHz jetting frequency. CMYK+LcLm+WW+VV (Optional).

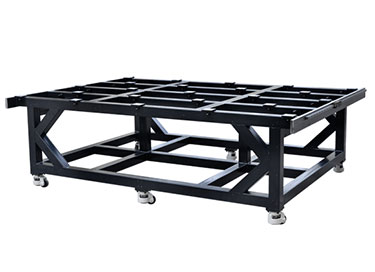

Industrial Y Structure Tungsten Steel Frame
Constructed with industrial Y frame and structure machine is heavy duty and built to last.

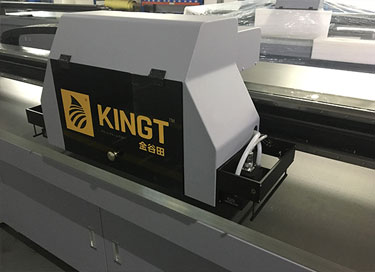

Dual Anti-crash System
The mechanical anti-crash device effectively stops the carriage to protect print head once it touches the media; Hydraulic stoppers avoid the damage of the head carriage once it accidentally crashes to the left or right end.

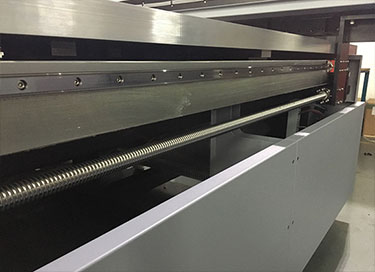

High-performance lead Screw Introduce
Both sides of the printer are equipped with industrial driving screws which ensure high accuracy of the print position and enhance its durability.

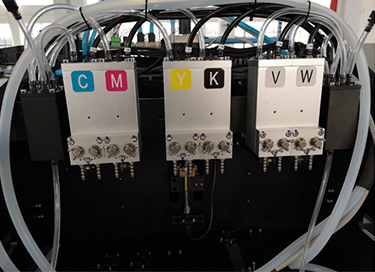

Dual Negative Pressure Ink System
Separate negative pressure system for white and color ink supply with digital control greater pressure display gauges increase printing speed and stability.

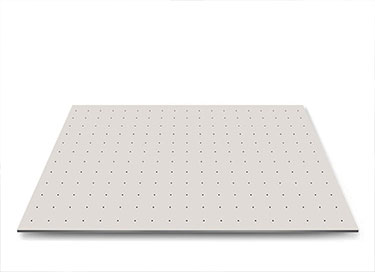

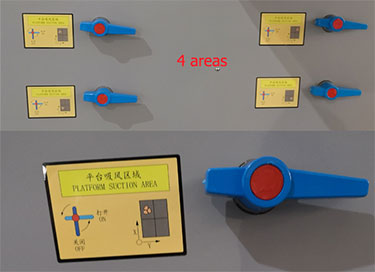

4 Zones Vacuum System
The vacuum system is divided into 4 zones which can be controlled separately. That minimize the manual steps and increase the efficiency for small batch printing.

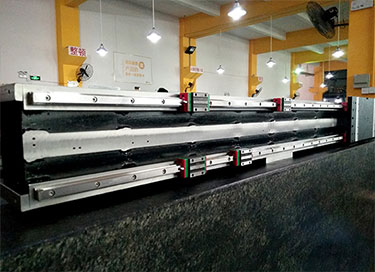

Cross Beam Adopts Steel Frame with Dual Guide Rails
Dual linear motion guide provides highly stable environment at high speed printing.
Mechanical Material Alignment System
Mechanical alignment point allows accurate and consistent media placement.

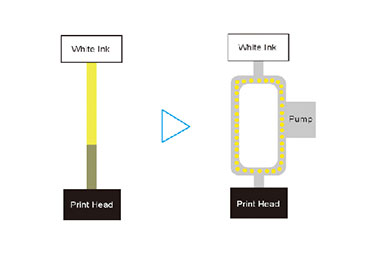

White Ink Circulation System
It keeps color particulates in motion in a bid to improve stability and dispersions of the pigments in the fluid reservoir and ink path.

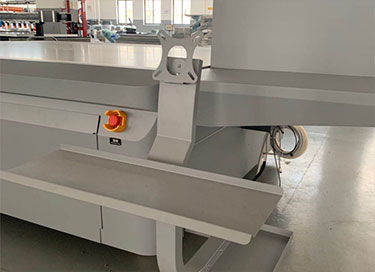

Stand support for computer
Stand support for computer (Gen5/Gen6 updated)
ColorGate RIP software
ColorGate RIP software (Germany)
CMYK color
CMYK+ LcLm+ WW(white)+ VV(varnish) (optional)
| Model | 2033 |
| Printhead | 3~8 Gen5 Printheads (Gen6 optional) |
| Printing Technology | Piezoelectric inkjet, variable dot printing, grayscale technology (7~21pl) |
| X and Y Motor | Industrial high quality servo motors x3 |
| Printing Resolution | Up to 720x1200 dpi |
| Printing Direction | Uni and Bi-direction |
| Ink Type | UV LED curable inks |
| Ink Configuratoin | CMYK+WW (Standard), CMYKLcLm+WW, CMYK+WW+WW, CCMMYYKK, CMYK+WW+VV |
| Ink Cartridge Size | 1500ml |
| Ink Supply System | Negative Pressure System (NPS) with Automatic Ink Supply |
| Curing System | Daul UV LED lamps, water cooling system |
| Image Process Software | ColorGate (Bundle Version) |
| File Format | Tiff, Jpeg, Postscript, EPS, PDF, DCS2.0 |
| Interface | USB 2.0 |
| Printer Dimesions (X*Y*Z) | 3850x4120x1347 mm |
| Wooden Box Dimensions (X*Y*Z) | 2230x4250x1250 mm (for body), 4000x850x700 mm (for cross beam) |
| Net Weight | 1800 kgs |
| Power Requirement | Imput voltage: 220-240V, single-phase, 50/60HZ, 7000W |
| Operating Conditions | Temperature: 25~30°C; Relative Humidity: 40%~60%; |
AFTER-SALES SERVICE
Training
Free Training for support customer learn more GUNSJET UV flatbed printer.
On-site Installation
Experienced technician to custom side assist custom install and operate the machine.
FTP
FTP online document best support our custom anytime.
Online Service
We provide effective online service anytime, such Whatapp, Wechat, Email.
Free warranty
One year free warranty (except printhead and consumables).
FAQ
Q What is the Application Range of UV Printer?
Our UV printer enjoys wide application range. Currently, it has been extensively applied to advertisement, glasspanel, wood floor, ceramic tile, suspended ceiling, electronic product shell, individualized decoration and other fields. Fordetailed application cases, please refer to printer solutions in different application fields.
Q How many mobile phone cases can you print a day?
Take LE-2513 for example, we can print Iphone case about 5000 units per day.
Q How many years can a machine last?
About 8-10 years
Q How many machines will you sell earch year?
In the year of 2016, we sold 880 units and we sold 1200 units in 2017.we are the Top 3 Ricoh manufacturer in China.
Q How about the printing cost?
1L ink can print 80 M2,it is about 1 USD per square meter printing.
Q How many people in your company?
The number of employees is 200+, and we have the R&D 30 people, technical support 60 people, production 60 people. Strong research and development ability allows constant launches of new products to keep you at the top of the league.
Q What is your company advantage?
1.Accumulating nearly a decade of experiences in UV printing industry, GUNSJET provides you professional solutions in UV printers and help you save time and effort getting into the UV market.
2.GUNSJET is a trusted manufacturer with recognition from international suppliers. We ensure stable supplies of genuine products.
3.The top 3 printheads customer for Ricoh shows that GUNSJET takes up a significant market share of Ricoh printers in the market.
4.Expansion of manufacturing site and big production capability can cater your growing demand and provide timely delivery. No need to worry about delay or no stock.
5.The sales volume and amount doubled by 100millions in 2017 shows that you will be working with a fast growing company and expand the potential business together.
