UV Flatbed Printers
● Print Area: 【3.28 x 5.25 feet】1.0 x 1.6 meters (100 x 160 cm), more larger size: 120 x 160cm (optional)
● 5~8 pcs Ricoh GH2220 printheads (100% orignal new from Ricoh)
● Longer lifetime than other printheads
● 3.5PL variable dot printing: More refined printing than 5pl and 7pl printheads
● Hi-Resolution, Hi-cost effective, Hi-CP value
● Ink color: CMYK + W, V
● Able to print onto most flat materials
● Support overseas installation, free training
● Varnish or gloss printing available
DESCRIPTIONS

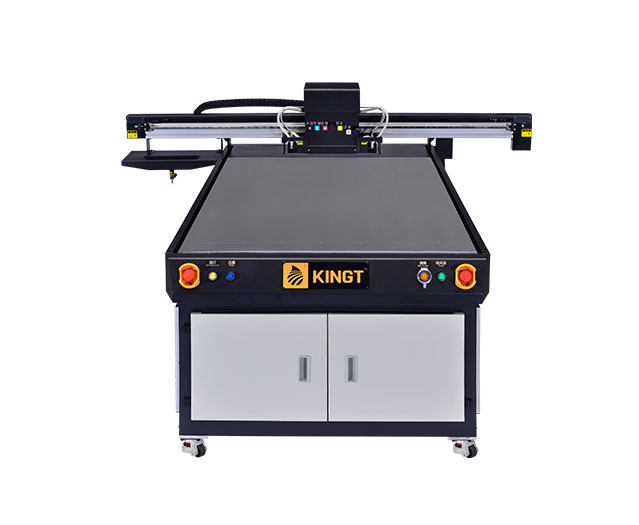

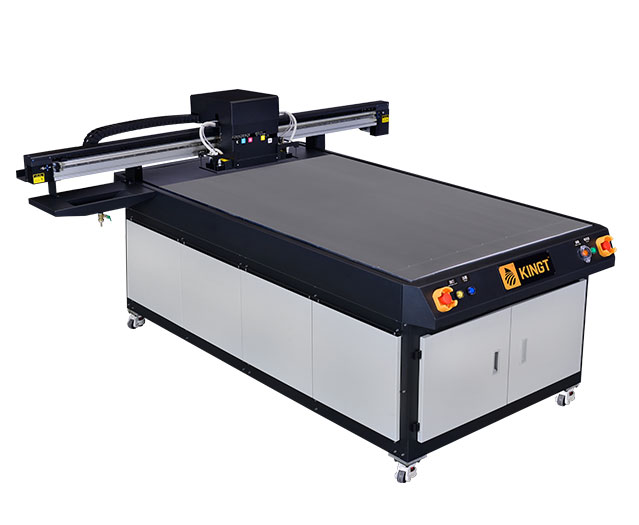

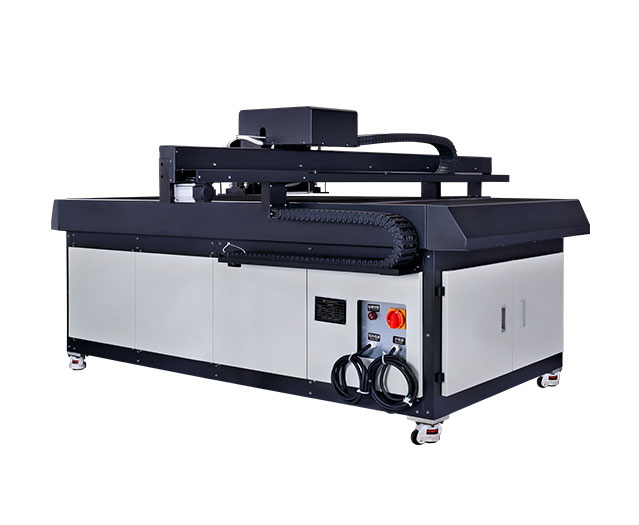

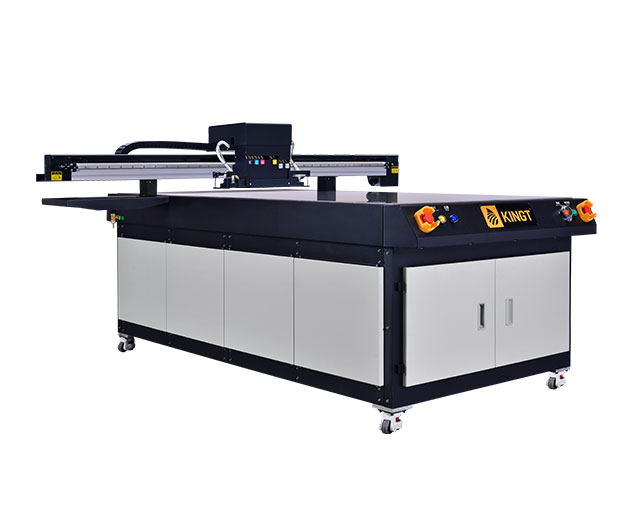

1016GH Small Format UV Flatbed Printer with Ricoh Gh2220 Print heads
Looking For Most Affordable Small UV Flatbed Printer?
It is your best choice if you are looking for small format uv printers for single color or multiple-color printing on various flat surfaces. GUNSJET is a professional digital flatbed printing products manufacturer and solution provider, focus on Ricoh uv flatbed printer.
Equipped with 100cm × 160cm print size, adopting new 5-8 pcs grey level Ricoh GH2220 print head, 1016GH UV flatbed printer is a gerneral small format size, suitable for both bulk production and small size printing demands. More cost-effective than 6090 uv printer.
1016GH small format UV flatbed printer offers high reliability and performance, perfect for printing on to all types of suitable media.
Application material: phone case, glass, ceramic tiles, ceiling, aluminum sheet, wood board, door sheet, metal panel, billboard, acrylic panel, plexiglass, paper board, foam board, PVC expansion board, corrugated cardboard; flexible materials such as PVC, vinyl sticker, reflective film, oil painting, leather etc.
Application Areas: Decoration industry, glass industry, sign industry, exhibition industry, rigid paperboard packing industry, leather, artware industry, furniture industry etc.
The market position of small UV flatbed printer more and more important. Therefore multi functional, stable performance, high resolution flatbed uv printer become indispensable products in the market. 1016 small format digital uv printing machine price is low on a like for like basis against many other flatbed uv printer. All walks of life, factories and enterprises love it, and it can also win proofing time for customers to rapidly batch printing products. So buy this small uv printing machine for a fast return on your investment.
Share a Few Details about Your Business Needs, we can provide the printer with excellent performance and competitive price. You will enjoy our one-stop service.

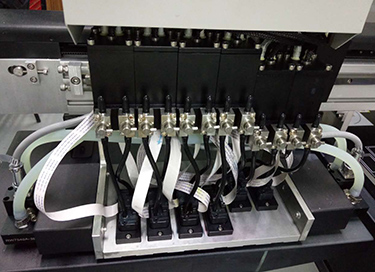

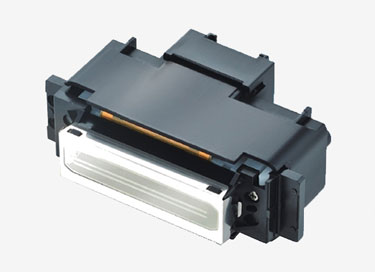

Ricoh GH2220 Printhead
Latest Ricoh development of industrial GH2220 printheads makes continuous printing at an extra-high quality and delivers excellent cost performance. 5~8 pcs GH2220 Printheads, 3.5pl drop volume, CMYK+WW+VV (optional)
Negative Pressure Ink Supply System
Pressure system for ink supply with digital control greater pressure display gauges to increase printing speed and stability.
Vacuum Bed Platform
The vacuum bed holds media steady to ensure stable printing.The vacuum system can be turned ON/OFF easily from the control panel by a button.
Mechanical Anti Crash System
Mechanical anti crash device effectively stops the carriage to protect print head once it touches the media.
Automatic Height Detection
Once altimeter touch media, carrige automaticlly adjust itself to appropriate height.
Low Ink Volume Reminding System
When the ink volume is low, the alarm will light up and beep.
White Ink Circulation System
It keeps color particulates in motion in a bid to improve stability and dispersions of the pigments in the fluid reservoir and ink path.
ColorGate RIP software
ColorGate RIP software (Germany)
CMYK colors
CMYK+ WW+ VV (optional)
| Model | 1016 |
| Printhead | 5~8 GH2220 Printheads |
| Printing Technology | Piezoelectric inkjet, variable dot printing, grayscale technology (3.5-7pl) |
| X and Y Motor | High Quality Servo Motors |
| Printing Resolution | 720x900 DPI, 720x1200 DPI |
| Printing Direction | Uni and Bi-direction |
| Ink Type | UV LED curable inks |
| Ink Configuratoin | CMYK+W (Standard), CMYK+WW, CMYK+WW+VV |
| Ink Cartridge Size | 1500ml Bottle |
| Ink Supply System | Negative Pressure System (NPS) with Automatic Ink Supply |
| Curing System | Daul UV LED lamps, water cooling system |
| Image Process Software | ColorGate (Bundle Version) |
| File Format | Tiff, Jpeg, Postscript, EPS, PDF, DCS2.0 |
| Interface | USB 2.0 |
| Printer Dimesions (X*Y*Z) | 2150x2218x1132 mm |
| Wooden Box Dimensions (X*Y*Z) | 2250x2350x1350 mm |
| Net Weight | 450kgs |
| Power Requirement | Imput voltage: 220-240V, single-phase, 50/60HZ, 4000W |
| Operating Conditions | Temperature: 25~30°C; Relative Humidity: 40%~60%; |
AFTER-SALES SERVICE
Training
Free Training for support customer learn more GUNSJET UV flatbed printer.
On-site Installation
Experienced technician to custom side assist custom install and operate the machine.
FTP
FTP online document best support our custom anytime.
Online Service
We provide effective online service anytime, such Whatapp, Wechat, Email.
Free warranty
One year free warranty (except printhead and consumables).
FAQ
Q What is the Application Range of UV Printer?
Our UV printer enjoys wide application range. Currently, it has been extensively applied to advertisement, glasspanel, wood floor, ceramic tile, suspended ceiling, electronic product shell, individualized decoration and other fields. Fordetailed application cases, please refer to printer solutions in different application fields.
Q How many mobile phone cases can you print a day?
Take LE-2513 for example, we can print Iphone case about 5000 units per day.
Q How many years can a machine last?
About 8-10 years
Q How many machines will you sell earch year?
In the year of 2016, we sold 880 units and we sold 1200 units in 2017.we are the Top 3 Ricoh manufacturer in China.
Q How about the printing cost?
1L ink can print 80 M2,it is about 1 USD per square meter printing.
Q How many people in your company?
The number of employees is 200+, and we have the R&D 30 people, technical support 60 people, production 60 people. Strong research and development ability allows constant launches of new products to keep you at the top of the league.
Q What is your company advantage?
1.Accumulating nearly a decade of experiences in UV printing industry, GUNSJET provides you professional solutions in UV printers and help you save time and effort getting into the UV market.
2.GUNSJET is a trusted manufacturer with recognition from international suppliers. We ensure stable supplies of genuine products.
3.The top 3 printheads customer for Ricoh shows that GUNSJET takes up a significant market share of Ricoh printers in the market.
4.Expansion of manufacturing site and big production capability can cater your growing demand and provide timely delivery. No need to worry about delay or no stock.
5.The sales volume and amount doubled by 100millions in 2017 shows that you will be working with a fast growing company and expand the potential business together.
