UV Flatbed Printers
Product Highlights:
● Best-selling and stable working.
● Ricoh G5 industrial print head, Longer lifetime than other printheads;
● Wide Format Print Size 250 X 130 cm【8.2 x 4.26 feets】;
● Durable 3pcs (8pcs max) RICOH GEN5 printheads (Gen6 optional);
● 7 PL variable dot printing;
● Better relief or embossment, varnish or gloss, and 3D effects;
● UV ink color: CMYK, Lc, Lm plus W, V;
● Able to print on most materials;
● Support overseas installation and free training;
DESCRIPTIONS

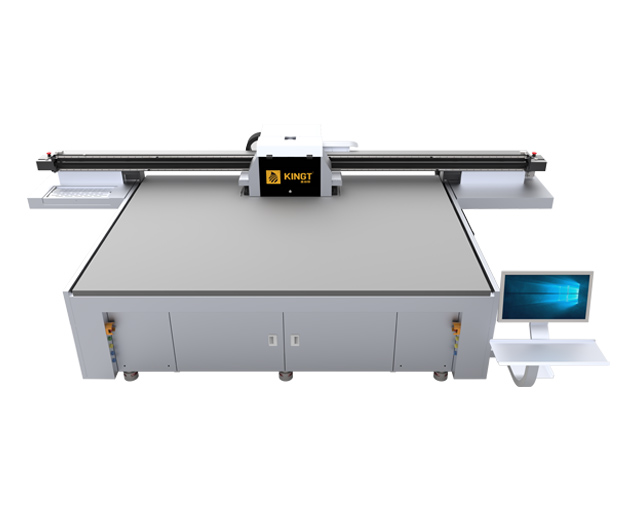

2513 Wide Format UV Flatbed Printer with Ricoh Gen5 Print heads
Looking For How To Gain Competitive Advantage With UV Flatbed Printer?
From small format to large, we are passionate about print. 2513G5 wide
format UV flatbed printer is the best-selling and the most popular styles of uv flatbed printing machine.
Equipped with all the necessary performance, product quality, ease of use, and environmental friendliness required of a UV flatbed printing machine. It can print any flat materials that thickness are less than 100mm. Of course, it has a higher configuration. For example: high speed and high resolution with Gen6 Printhead, or print height 40cm, or large format print area 2030, industrial UV printer (200cm*300cm print area)…
Equipped with industrial Ricoh Gen5 printhead, the 2513 wide format UV printer can
print in hi-speed as well as hi-precision in 8 colors 720*1200 DPI. It offers
fast, built tough for non-stop print production with high-impact graphic
results, so you can build your sign, photo, image and graphics printing
business.
Printing materials:
acrylic, signage, wood, ceramic tiles, glass, phone case,
metal, PVC, leather, backwall ground and so on. Compatible with hundreds of
substrates, ramp-up your UV printing speed, volume and profit.
Wide application:
Home decoration industry: glass, acrylic, ceramic tiles, individual furniture, background wall, cupboard, ceilings, home appliance panel…
Advertising sign industry: advertising sign, signage, acrylic sign, poster, backlit, billboard, banner, KT board…
Glass decoration industry: flat glass, steel glass, art-glass or plexi glass, glass partition, glass sliding door, glass background wall…
Printing and packaging industry: paper box, wooden box, metal box, PVC and leather bags…
When making the equipment decision there are two important points to consider:
1. Help pick the best UV printer for your needs.
2. Provide the support services required to keep your equipment in top condition.
It shows in our commitment to meeting every client need and our investment in the technology behind it.
Our 2513 uv printer works to expand customer business by accommodating a wide variety of needs and requirements:
Power saving, long-life LED-UV lamps and bottle-fed ink are eco-friendly;
User Friendly Operation System;
Wide Range of Media;
Convenient User Features;
Mass Production and Personalized Customization;
......
RICOH GEN5 Printheads
Staggered 3~8 Ricoh Gen5 printheads, Make of stainless steel volume 7pl. Long durable life (100 billion actuation), 30kHz jetting frequency. CMYK+LcLm+WW+VV (Optional).
Industrial Y Structure Tungsten Steel Frame
Constructed with industrial Y frame and structure machine is heavy duty and built to last.
Dual Anti-crash System
The mechanical anti-crash device effectively stops the carriage to protect print head once it touches the media; Hydraulic stoppers avoid the damage of the head carriage once it accidentally crashes to the left or right end.
Cross Beam Adopts Steel Frame with Dual Guide Rails
Dual linear motion guide provides highly stable environment at high speed printing.
High-performance lead Screw Introduce
Both sides of the printer are equipped with industrial driving screws which ensure high accuracy of the print position and enhance its durability.
Dual Negative Pressure Ink System
Separate negative pressure system for white and color ink supply with digital control greater pressure display gauges increase printing speed and stability.
Mechanical Material Alignment System
Mechanical alignment point allows accurate and consistent media placement.
White Ink Circulation System
It keeps color particulates in motion in a bid to improve stability and dispersions of the pigments in the fluid reservoir and ink path.
4 Zones Vacuum System
The vacuum system is divided into 4 zones which can be controlled separately. That minimize the manual steps and increase the efficiency for small batch printing.
Stand support for computer
Stand support for computer (Gen5/Gen6 updated)
CMYK color
CMYK+ LcLm+ WW(white)+ VV(varnish) (optional)
| Model | 2513 |
| Printhead | 3~8 Ricoh Gen5 Printheads |
| Printing Technology | Piezoelectric inkjet, variable dot printing, grayscale technology (7~21pl) |
| X and Y Motor | Industrial high quality servo motors x3 |
| Printing Resolution | Up to 720 x 1200 dpi |
| Printing Direction | Uni and Bi-direction |
| Ink Type | UV LED curable inks |
| Ink Configuratoin | CMYK + WW + VV (Optional) |
| Ink Cartridge Size | 1500ml |
| Ink Supply System | Negative Pressure System (NPS) with Automatic Ink Supply |
| Curing System | Daul UV LED lamps, water cooling system |
| Image Process Software | ColorGate (Bundle Version) |
| File Format | Tiff, Jpeg, Postscript, EPS, PDF, DCS2.0 |
| Interface | USB 2.0 |
| Printer Dimesions (X*Y*Z) | 4330 x 1917 x 1316 mm |
| Wooden Box Dimensions (X*Y*Z) | 4530 x 2130 x 1600 mm |
| Net Weight | 1500 kgs |
| Power Requirement | Imput voltage: 220 ~ 240V, single-phase, 50/60HZ, 7000W |
| Operating Conditions | Temperature: 25~30°C; Relative Humidity: 40%~60%; |
AFTER-SALES SERVICE
Training
Free Training for support customer learn more GUNSJET UV flatbed printer.
On-site Installation
Experienced technician to custom side assist custom install and operate the machine.
FTP
FTP online document best support our custom anytime.
Online Service
We provide effective online service anytime, such Whatapp, Wechat, Email.
Free warranty
One year free warranty (except printhead and consumables).
FAQ
Q What is the Application Range of UV Printer?
Our UV printer enjoys wide application range. Currently, it has been extensively applied to advertisement, glasspanel, wood floor, ceramic tile, suspended ceiling, electronic product shell, individualized decoration and other fields. Fordetailed application cases, please refer to printer solutions in different application fields.
Q How many mobile phone cases can you print a day?
Take LE-2513 for example, we can print Iphone case about 5000 units per day.
Q How many years can a machine last?
About 8-10 years
Q How many machines will you sell earch year?
In the year of 2016, we sold 880 units and we sold 1200 units in 2017.we are the Top 3 Ricoh manufacturer in China.
Q How about the printing cost?
1L ink can print 80 M2,it is about 1 USD per square meter printing.
Q How many people in your company?
The number of employees is 200+, and we have the R&D 30 people, technical support 60 people, production 60 people. Strong research and development ability allows constant launches of new products to keep you at the top of the league.
Q What is your company advantage?
1.Accumulating nearly a decade of experiences in UV printing industry, GUNSJET provides you professional solutions in UV printers and help you save time and effort getting into the UV market.
2.GUNSJET is a trusted manufacturer with recognition from international suppliers. We ensure stable supplies of genuine products.
3.The top 3 printheads customer for Ricoh shows that GUNSJET takes up a significant market share of Ricoh printers in the market.
4.Expansion of manufacturing site and big production capability can cater your growing demand and provide timely delivery. No need to worry about delay or no stock.
5.The sales volume and amount doubled by 100millions in 2017 shows that you will be working with a fast growing company and expand the potential business together.
