UV Flatbed Printers
● Print Size 【5.25 x 3.28 feet】1.6 x 1.0 Meters
● Durable 3pcs(8pcs max) Ricoh Gen5 printheads
● 7PL variable dot printing
● Faster speed than GH2220 printheads
● Better relief or embossment, varnish or gloss, and 3D effects.
● Ink color: CMYK/LC/LM plus W, V
● High quality industrial 3pcs servo motors
● Able to print virtually onto any materials
● Support overseas installation and free training
DESCRIPTIONS

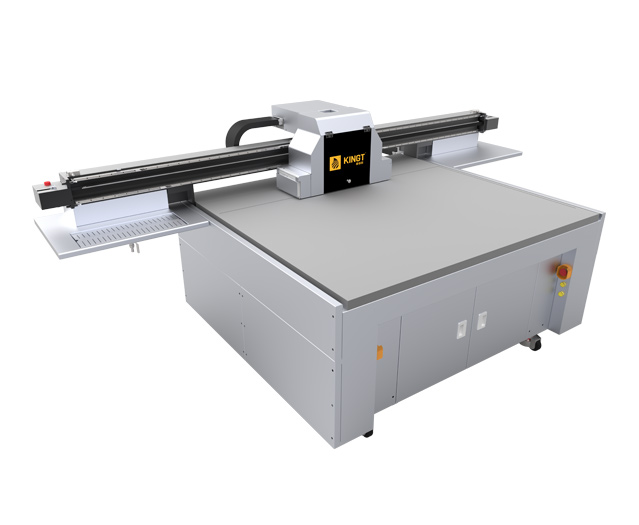

1610G5 Digital UV Flatbed Printer with Ricoh Gen5 Print heads
LOOKING FOR HOW TO GAIN COMPETITIVE ADVANTAGE WITH UV FLATBED PRINTER?
It is your best choice if you are looking for medium format printer for single color or multiple-color printing on various flat surfaces.
The 1610G5 Digital UV Led inkjet printer is another compact UV printer of us that works with Ricoh Gen5 printheads (Gen6 optional). With 160cm × 100cm print size, adopting new 3-8 pcs grey level G5 printhead, high quality direct printing on a wide range of materials such as wood, glass, metals, leathers, ceramic tile, acrylic, etc. And Our ink system is based on an advanced LED UV curing system. The LED UV ink technology allows the creation of stunning 3D textures and raised printing effects, 3D and mbossment effect especially.
1610G5 digital uv flatbed printer is clearly the ideal solution for small advertising agencies and similarly printing houses or companies related to printing. The exceptional precision and accuracy of the machine ensures perfect printing with a minimum of effort. Combined with outstanding image quality, high productivity and low-cost operation, this media flexibility provides the opportunity to create a broad range of high-value applications for your customers.
We also have a higher configuration: high speed with Gen6 Printhead, or large format print area 2513, or height tolerance printing optional.
The 1610G5 digital uv flatbed printer is your best partner! It is Cost-effective model with a low cost in the printing. Find your perfect digital uv printer today!
RICOH GEN5 Printheads
Staggered 3~8 Ricoh Gen5 printheads, Make of stainless steel volume 7-35pl. Long durable life (100 billion actuation), 30kHz jetting frequency. CMYKLcLmWWVV (Optional).
Industrial Y Structure Tungsten Steel Frame
Constructed with industrial Y frame and structure machine is heavy duty and built to last.
Dual Anti-crash System
The mechanical anti-crash device effectively stops the carriage to protect print head once it touches the media; Hydraulic stoppers avoid the damage of the head carriage once it accidentally crashes to the left or right end.
High-performance lead Screw Introduce
Both sides of the printer are equipped with industrial driving screws which ensure high accuracy of the print position and enhance its durability.

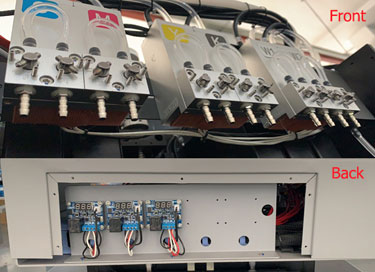

Dual Negative Pressure Ink System
Separate negative pressure system for white and color ink supply with digital control greater pressure display gauges increase printing speed and stability.
Heat device for sub-ink tank (Gen5 updated)
It can keep the ink under constant temperature in the sub-ink tank, so that the printheads can print more smooth and not easy to be clogged.
Cross Beam Adopts Steel Frame with Dual Guide Rails
Dual linear motion guide provides highly stable environment at high speed printing.
Mechanical Material Alignment System
Mechanical alignment point allows accurate and consistent media placement.
White Ink Circulation System
It keeps color particulates in motion in a bid to improve stability and dispersions of the pigments in the fluid reservoir and ink path.
ColorGate RIP software
ColorGate RIP software (Germany)
CMYK color
CMYK+ LcLm+ WW(white)+ VV(varnish) (optional)
| Model | 1610 |
| Printhead | 3~8 Gen5 Printheads |
| Printing Technology | Piezoelectric inkjet, variable dot printing, grayscale technology |
| X and Y Motor | High Quality Servo Motors |
| Printing Resolution | up to 720x1200 dpi |
| Printing Direction | Uni and Bi-direction |
| Ink Type | UV LED curable inks |
| Ink Configuratoin | CMYK+WW (Standard), CMYKLcLm+WW, CMYK+WW+WW, CCMMYYKK, CMYK+WW+VV |
| Ink Cartridge Size | 1500ml Bottle |
| Ink Supply System | Negative Pressure System (NPS) with Automatic Ink Supply |
| Curing System | Daul UV LED lamps, water cooling system |
| Image Process Software | ColorGate (Bundle Version) |
| File Format | Tiff, Jpeg, Postscript, EPS, PDF, DCS2.0 |
| Interface | USB 2.0 |
| Printer Dimesions (X*Y*Z) | 3310x1617x1316mm |
| Wooden Box Dimensions (X*Y*Z) | 3530x1830x1600mm |
| Net Weight | 700kgs |
| Power Requirement | Imput voltage: 220-240V, single-phase, 50/60HZ, 5000W |
| Operating Conditions | Temperature: 25~30°C; Relative Humidity: 40%~60%; |
AFTER-SALES SERVICE
Training
Free Training for support customer learn more GUNSJET UV flatbed printer.
On-site Installation
Experienced technician to custom side assist custom install and operate the machine.
FTP
FTP online document best support our custom anytime.
Online Service
We provide effective online service anytime, such Whatapp, Wechat, Email.
Free warranty
One year free warranty (except printhead and consumables).
FAQ
Q What is the Application Range of UV Printer?
Our UV printer enjoys wide application range. Currently, it has been extensively applied to advertisement, glasspanel, wood floor, ceramic tile, suspended ceiling, electronic product shell, individualized decoration and other fields. Fordetailed application cases, please refer to printer solutions in different application fields.
Q How many mobile phone cases can you print a day?
Take LE-2513 for example, we can print Iphone case about 5000 units per day.
Q How many years can a machine last?
About 8-10 years
Q How many machines will you sell earch year?
In the year of 2016, we sold 880 units and we sold 1200 units in 2017.we are the Top 3 Ricoh manufacturer in China.
Q How about the printing cost?
1L ink can print 80 M2,it is about 1 USD per square meter printing.
Q How many people in your company?
The number of employees is 200+, and we have the R&D 30 people, technical support 60 people, production 60 people. Strong research and development ability allows constant launches of new products to keep you at the top of the league.
Q What is your company advantage?
1.Accumulating nearly a decade of experiences in UV printing industry, GUNSJET provides you professional solutions in UV printers and help you save time and effort getting into the UV market.
2.GUNSJET is a trusted manufacturer with recognition from international suppliers. We ensure stable supplies of genuine products.
3.The top 3 printheads customer for Ricoh shows that GUNSJET takes up a significant market share of Ricoh printers in the market.
4.Expansion of manufacturing site and big production capability can cater your growing demand and provide timely delivery. No need to worry about delay or no stock.
5.The sales volume and amount doubled by 100millions in 2017 shows that you will be working with a fast growing company and expand the potential business together.
