UV Flatbed Printers
To help GUNSJET users stand out from the crowd, we have the following advantages:
● Print size 【8.2 x 4.26 feet】2.5 X 1.3 meters
● 3pcs ( 8pcs max) Ricoh Gen6 (5pl) printheads
● Longer lifetime than EPS printheads
● 30% Faster than Ricoh Gen5(7pl) printheads
● Better relief or embossment, varnish or gloss, and 3D effects
● Ink color: CMYK/LC/LM plus W, V
● High quality 3pcs Panasonic motors
● Able to print onto most materials
● Supply Overseas installation and free training
DESCRIPTIONS

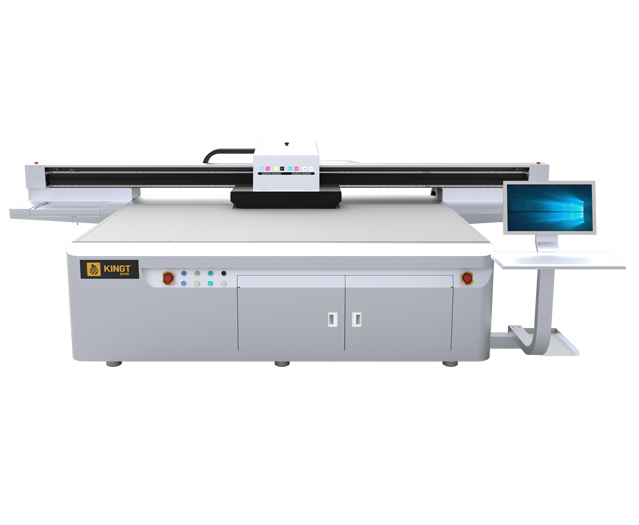

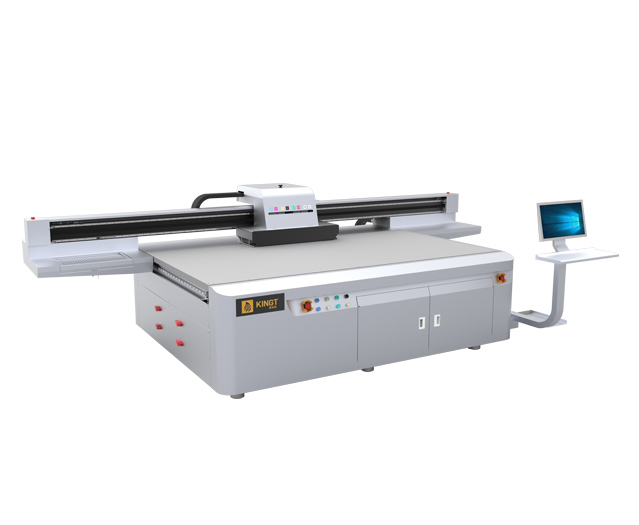

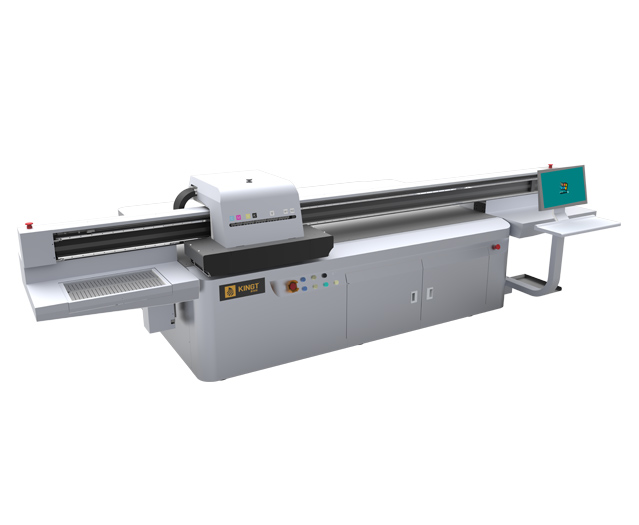

2513G6 High Speed UV Flatbed Printer with Ricoh Gen6 Print heads
LOOKING FOR MOST EFFICIENT PRINTHEADS UV FLATBED PRINTER?
The 2513G6 high speed UV flatbed printer is a super-wide format UV inkjet printer that combines value-added printing and powerful productivity. This easy to use, eco-friendly printer combines durability and affordability in one cool looking package.
Experience fast print speed, high-quality, and high precision with our 2513G6 wide format uv printer. It offers a variety of applications to help your print business grow with its versatile media handling capabilities. It is an industrial UV printing machine that has a robust beam with high precision mechanical accuracy.
The 2513G6 high speed UV flatbed printer uses the multi-configurable Ricoh G6 printhead. The gray level micro piezo Ricoh G6 industrial printhead includes internal heating, and with 3-8 optional configurations is the smart choice for a wide range of printing applications. With variable drop size (5pl-15pl) colors can be more vibrant than ever especially when printing high resolution imagery (635x1200dpi). And do not worry about speed, as the 2513G6 is one of the fastest UV flatbed printers for the money bar none. Did you say you were looking for a workhorse printer? Well look no further as this flatbed handles the 24 hours run cycle with stability and easy.
It’s time to print smarter and change the game of UV printing with 2513G6, a high speed UV LED flatbed printer.

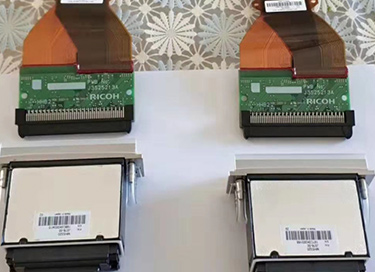

RICOH GEN6 Printheads
Detachable cable type, staggered 3~8 Ricoh Gen6 printheads, Make of stainless steel, Native Drow volume 5pl. CMYK / LcLm/ WW+VV (Optional)
Industrial Y Structure Tungsten Steel Frame
Constructed with industrial Y frame and structure machine is heavy duty and built to last.
High-performance lead Screw Introduce
Both sides of the printer are equipped with industrial driving screws which ensure high accuracy of the print position and enhance its durability.
Dual Negative Pressure Ink System
Separate negative pressure system for white and color ink supply with digital control greater pressure display gauges increase printing speed and stability.
4 Zones Vacuum System
The vacuum system is divided into 4 zones which can be controlled separately. That minimize the manual steps and increase the efficiency for small batch printing.
Mechanical Material Alignment System
Mechanical alignment point allows accurate and consistent media placement.
Cross Beam Adopts Steel Frame with Dual Guide Rails
Dual linear motion guide provides highly stable environment at high speed printing.
Dual Anti-crash System
The mechanical anti-crash device effectively stops the carriage to protect print head once it touches the media; Hydraulic stoppers avoid the damage of the head carriage once it accidentally crashes to the left or right end.
Stand support for computer
Stand support for computer (Gen5/Gen6 updated)
White Ink Circulation System
It keeps color particulates in motion in a bid to improve stability and dispersions of the pigments in the fluid reservoir and ink path.
ColorGate RIP software
ColorGate RIP software (Germany)
CMYK color
CMYK+ LcLm+ WW(white)+ VV(varnish) (optional)
| Model | 2513(Gen6) |
| Printhead | 3~8 Printheads (5pl) |
| Printing Technology | Piezoelectric inkjet, variable dot printing, grayscale technology |
| X and Y Motor | Industrial high quality servo motors x3 |
| Printing Resolution | 635x900 DPI / 635x1200 DPI |
| Printing Direction | Uni and Bi-direction |
| Ink Cartridge Size | 1500ml |
| Ink Type | UV LED curable inks |
| Ink Configuratoin | CMYK+WW (Standard), CMYK+LcLm+WW, CMYK+WW+W (Optional), CMYK+LcLm+WW+W (Optional) |
| Ink Supply System | Negative Pressure System (NPS) with Automatic Ink Supply |

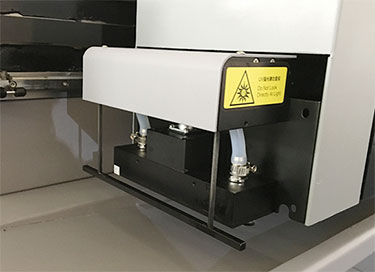

| Curing System | Daul UV LED lamps, water cooling system |
| Image Process Software | ColorGate (Bundle Version) |
| File Format | Tiff, Jpeg, Postscript, EPS, PDF, DCS2.0 |
| Interface | USB2.0 |
| Printer Dimesions (X*Y*Z) | 4550 x 2120 x 1450mm |
| Wooden Box Dimensions (X*Y*Z) | 4750 x 2330 x 1650mm |
| Net Weight | 1500kgs |
| Power Requirement | Imput voltage: 220-240V, single-phase, 50/60HZ, 7000W |
| Operating Conditions | Temperature: 25~30°C; Relative Humidity: 40%~60%; |
2513G6 UV Flatbed Printer Description
AFTER-SALES SERVICE
Training
Free Training for support customer learn more GUNSJET UV flatbed printer.
On-site Installation
Experienced technician to custom side assist custom install and operate the machine.
FTP
FTP online document best support our custom anytime.
Online Service
We provide effective online service anytime, such Whatapp, Wechat, Email.
Free warranty
One year free warranty (except printhead and consumables).
FAQ
Q What is the Application Range of UV Printer?
Our UV printer enjoys wide application range. Currently, it has been extensively applied to advertisement, glasspanel, wood floor, ceramic tile, suspended ceiling, electronic product shell, individualized decoration and other fields. Fordetailed application cases, please refer to printer solutions in different application fields.
Q How many mobile phone cases can you print a day?
Take LE-2513 for example, we can print Iphone case about 5000 units per day.
Q How many years can a machine last?
About 8-10 years
Q How many machines will you sell earch year?
In the year of 2016, we sold 880 units and we sold 1200 units in 2017.we are the Top 3 Ricoh manufacturer in China.
Q How about the printing cost?
1L ink can print 80 M2,it is about 1 USD per square meter printing.
Q How many people in your company?
The number of employees is 200+, and we have the R&D 30 people, technical support 60 people, production 60 people. Strong research and development ability allows constant launches of new products to keep you at the top of the league.
Q What is your company advantage?
1.Accumulating nearly a decade of experiences in UV printing industry, GUNSJET provides you professional solutions in UV printers and help you save time and effort getting into the UV market.
2.GUNSJET is a trusted manufacturer with recognition from international suppliers. We ensure stable supplies of genuine products.
3.The top 3 printheads customer for Ricoh shows that GUNSJET takes up a significant market share of Ricoh printers in the market.
4.Expansion of manufacturing site and big production capability can cater your growing demand and provide timely delivery. No need to worry about delay or no stock.
5.The sales volume and amount doubled by 100millions in 2017 shows that you will be working with a fast growing company and expand the potential business together.
