UV Flatbed Printers
● Small A3 desktop uv flatbed printer
● Print Size 45cmX50cm
● 3.5PL RICOH GH2220 printheads with grey scale capability
● Ink color: CMYK/LC/LM plus W, V
● Easy operation, Hi-Resolution, Hi-Cost effective
● Able to print virtually onto most materials
● Support overseas installation and customers support
● Free training
DESCRIPTIONS

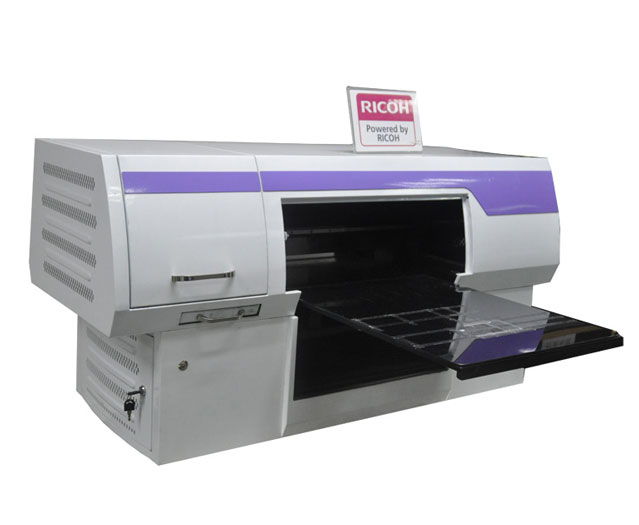

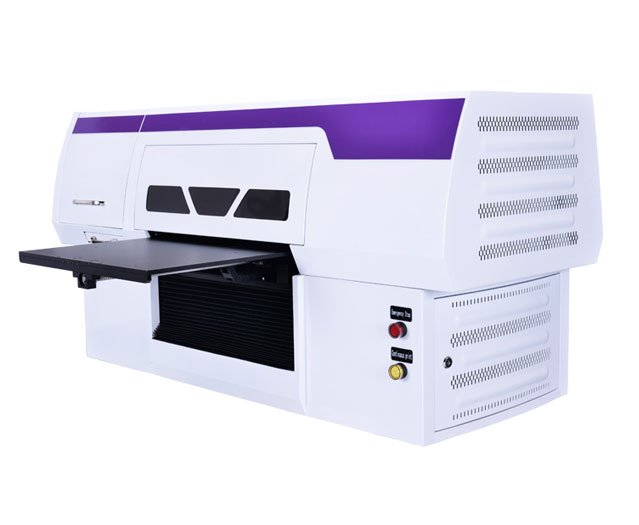

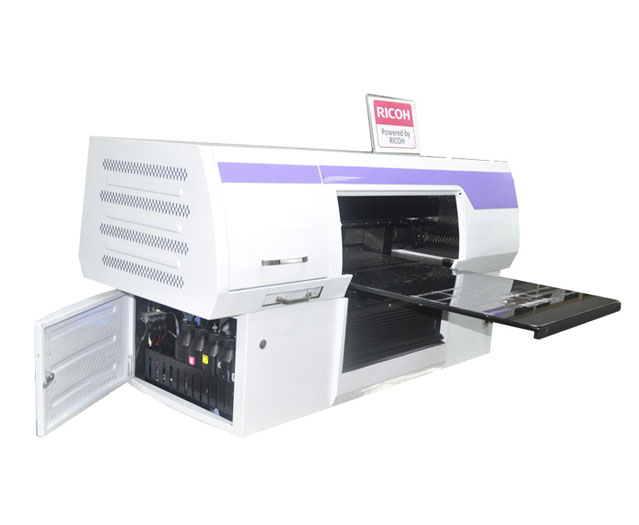

4550GH A3 Desktop UV Flatbed Printer with Ricoh GH2220 Printheads
Do you know the A3 desktop UV flatbed printer?
Small format desktop UV printer, can print your creative idea in colors and shapes.
Equipped 3 (up to 4) pcs Ricoh GH2220 printhead, the 4550GH A3 desktop UV flatbed printer is designed to print on both rigid and flexible materials, such as phone case, plastic card, acrylic, wood, leather. However, this small universal uv printer can print a variety of products, not limited to any material.
4550GH uv flatbed printer was specially designed for you who want to get an industrial printing speed and commercial printing result, special for you who want to get a vivid color result and high density of white ink printing. Products of any color can be printed on the A3 desktop flatbed printer by using colored and white UV ink. This uv printer is capable of direct printing without pre-coating, heating or any pretreatment.
Small businesses of all types and sizes can benefit from owning a small format UV printer. With these fast, versatile UV Printers you can better serve current customers and attract new ones.
GUNSJET 4550 A3 desktop UV flatbed printer is the ideal solution for DIY Customized printing on the products, which is a multi-functional small UV printing machine that created by your own demands. People increasingly want their possessions to be unique, to stand out from the crowd.
Saving you time now, making it easier and more efficient to operate the uv printer.

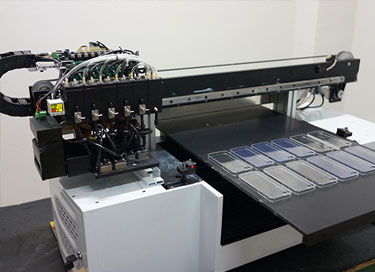

Ricoh GH2220 Printhead
Latest Ricoh development of industrial GH2220 printheads makes continuous printing at an extra-high quality and delivers excellent cost performance. 5~8 pcs GH2220 Printheads, 3.5pl drop volume, CMYK+WW+VV (optional)
Negative Pressure System
Pressure system for ink supply with digital control greater pressure display gauges to increase printing speed and stability.
Industrial Y Structure Frame
Constructed with industrial Y frame and structure, the machine is heavy duty and built to last.

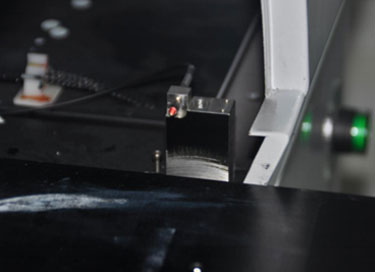

Automatic height detection
Once altimeter touch media, carriage automatically adjust itself to the appropriate height.
Low Ink Volume Reminding System
When the ink volume is low, the alarm will light up and beep.
Industrial Servo Motor
A high performance of industrial servo motor provides excellent control of the movement of the shuttle.
White Ink Circulation System
It keeps color particulates in motion in a bid to improve stability and dispersions of the pigments in the fluid reservoir and ink path.
ColorGate RIP software
ColorGate RIP software (Germany)
CMYK colors
CMYK+ WW+ VV (optional)
| Model | 4550GH |
| Printhead | 3 Ricoh GH2220 printhead Up to 4 printhead (Optional) |
| Maximum Print Size | 45cm(W) X 50cm (L) |
| Structure | Industrial Frame with Heavy Duty Y-Bar |
| Printing Resolution | 720x900, 720x1200 DPI |
| Printing Direction | Uni and Bi-direction |
| Ink Type | UV LED curable inks |
| X and Y Motor | High Quality Servo Motors |
| Ink Cartridge Size | 500ml Bottle |
| Ink Supply System | Negative Pressure System (NPS) with Automatic Ink Supply |
| Printing Technology | Variable Dot Printing (Grey Scale Printing) |
| Ink Color | CMYK, White (Standard), Varnish (Optional) |
| UV Technology | 1 pcs 6~8 W UV LED Lamp |
| Interface | USB 2.0/3.0 |
| RIP | PhotoPrint (Bundle Version), ColorGate (Optional) |
| Printer Dimesions (X*Y*Z) | 1300 x 650 x 890mm |
| Net Weight | 135kgs |
| Power Requirement | Imput voltage: 100-110Volt, 220-240V, 50/60Hz |
| Operating Conditions | Temperature: 25~30°C; Relative Humidity: 40%~60%; |
GUNSJET 4550 Phone Case UV Printer, 45*50cm Small UV Printing Machine.
AFTER-SALES SERVICE
Training
Free Training for support customer learn more GUNSJET UV flatbed printer.
On-site Installation
Experienced technician to custom side assist custom install and operate the machine.
FTP
FTP online document best support our custom anytime.
Online Service
We provide effective online service anytime, such Whatapp, Wechat, Email.
Free warranty
One year free warranty (except printhead and consumables).
FAQ
Q What is the Application Range of UV Printer?
Our UV printer enjoys wide application range. Currently, it has been extensively applied to advertisement, glasspanel, wood floor, ceramic tile, suspended ceiling, electronic product shell, individualized decoration and other fields. Fordetailed application cases, please refer to printer solutions in different application fields.
Q How many mobile phone cases can you print a day?
Take LE-2513 for example, we can print Iphone case about 5000 units per day.
Q How many years can a machine last?
About 8-10 years
Q How many machines will you sell earch year?
In the year of 2016, we sold 880 units and we sold 1200 units in 2017.we are the Top 3 Ricoh manufacturer in China.
Q How about the printing cost?
1L ink can print 80 M2,it is about 1 USD per square meter printing.
Q How many people in your company?
The number of employees is 200+, and we have the R&D 30 people, technical support 60 people, production 60 people. Strong research and development ability allows constant launches of new products to keep you at the top of the league.
Q What is your company advantage?
1.Accumulating nearly a decade of experiences in UV printing industry, GUNSJET provides you professional solutions in UV printers and help you save time and effort getting into the UV market.
2.GUNSJET is a trusted manufacturer with recognition from international suppliers. We ensure stable supplies of genuine products.
3.The top 3 printheads customer for Ricoh shows that GUNSJET takes up a significant market share of Ricoh printers in the market.
4.Expansion of manufacturing site and big production capability can cater your growing demand and provide timely delivery. No need to worry about delay or no stock.
5.The sales volume and amount doubled by 100millions in 2017 shows that you will be working with a fast growing company and expand the potential business together.
